Rewind Paddle Descent Adj.: Adjusting the Rewind Paddle Descent
Adjust rewind paddle descent of the stacker.
Objects of Adjustment: Offset for All Size, SRA3
, A3 , SRA4 , A4
, A4 , A5 , B4 , B5 , 8K , 16K , 12
18 , 11 17 , 9 11 , 8.5 11 , 8.5 11 , 8.5 14 , 8 13 , 8.12 13.2 , 8.5 13 , 8.25 13 , 13 19 , SRA4 , 16K , Custom (380 - 488 mm), Custom (220 - 379 mm), Custom (148 - 219 mm)
If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

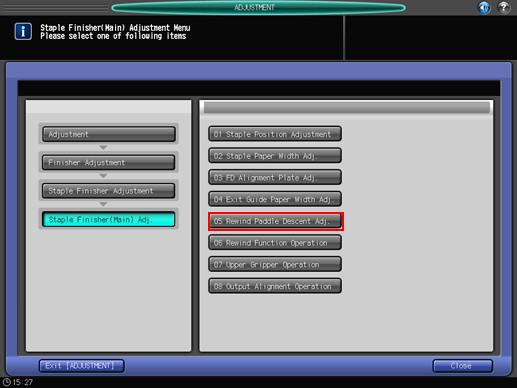

Press [Finisher Adjustment], [Staple Finisher Adjustment], [Staple Finisher(Main) Adj.], and [Rewind Paddle Descent Adj.] in sequence.

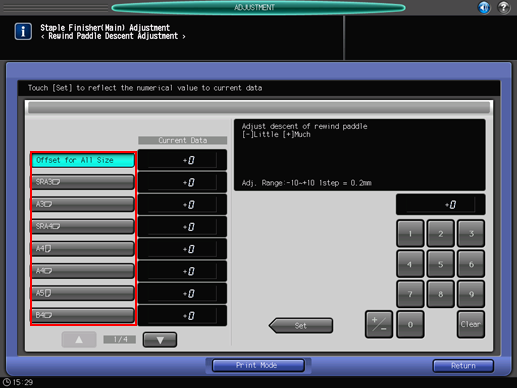

Select the size to be adjusted using [
] or [
].
Press [Print Mode].
Load the paper size selected in step 3, then select that tray.
For [Output Setting], [Staple] is automatically selected.
Press Start on the control panel.
A sample pattern will be output.
Check the misalignment (a) of the sheets delivered to the primary (main) tray.
Check the misalignment between printed paper and exit guides in operation to estimate the adjustment amount.
Allowance: a = ± 1 mm
Press [Exit PrintMode] to return to the [Rewind Paddle Descent Adjustment] screen.
If any adjustment is required, use the touch panel keypad to enter the set value.
Adjustment Range: -10 ([Little]) to +10 ([Much]) (1 step = 0.2 mm)
Use [+/-] to specify the value to be positive or negative.
Repeat steps 4 to 9 until the desired result is obtained.
Press [Return].
The screen returns to the [Staple Finisher(Main) Adjustment Menu] screen.
