Creating Half-Fold Booklet

A machine mounted with Finisher FS-612, using Booklet in combination, can create a multiple page signature booklet folded and stapled at two positions (saddle stitched) in the center.

Original

Output

[Fold & Staple]

[Multi Half Fold]

Item

Description

Paper size

SRA3 , SRA4 , A3 , B4 , A4 , 12 18 , 11 17 , 8.5 14 , 8.5 11 (SRA3 for Multi Half-Fold only), Custom (Widthwise 210 mm to 314 mm, Lengthwise 279 mm to 458 mm / Widthwise 8.27" to 12.36", Lengthwise 10.98" to 18.03")

Paper weight

62 g/m2 to 105 g/m2 / 16 lb Bond to 28 lb Bond

Max. number of sheets

Multi Half-Fold: 3 sheets (62 g/m2 to 80 g/m2 / 16 lb Bond to 21 lb Bond), 1 sheet (81 g/m2 to 105 g/m2 / 22 lb Bond to 28 lb Bond)

Fold & Staple: 20 sheets (62 g/m2 to 80 g/m2 / 16 lb Bond to 21 lb Bond), 16 sheets (81 g/m2 to 105 g/m2 / 22 lb Bond to 28 lb Bond) (using trays 1 to 5, Multi Bypass Tray MB-506)

Output tray

Fold/Staple mode tray

Tray capacity

33 sets (3-sheet-folded in Multi Half-Fold using copy paper of 300 mm / 11.79" or longer)

25 sets (3-sheet-folded in Multi Half-Fold using copy paper of 299 mm / 11.75" or shorter)

20 sets (5-sheet-folded and stapled in Fold & Staple using copy paper of 300 mm / 11.79" or longer)

15 sets (5-sheet-folded and stapled in Fold & Staple using copy paper of 299 mm / 11.75" or shorter)

  1. Position the original.

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Press [Output Setting].

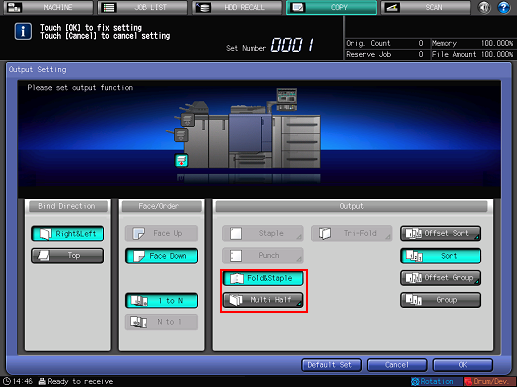

    The [Output Setting] screen is displayed.

  4. Select [Fold&Staple] or [Multi Half] under [Output].

  5. Press [OK] on the [Output Setting] screen.

    An icon representing specified output mode is displayed under [Output Setting] on the [COPY] screen. With [Multi Half-Fold] selected, [Booklet] in [Application] is also selected automatically.
