When a Paper Jam is Occurring on the Finisher FS-535
Sections inside the finisher prone to paper jams vary depending on the settings for [Finishing].

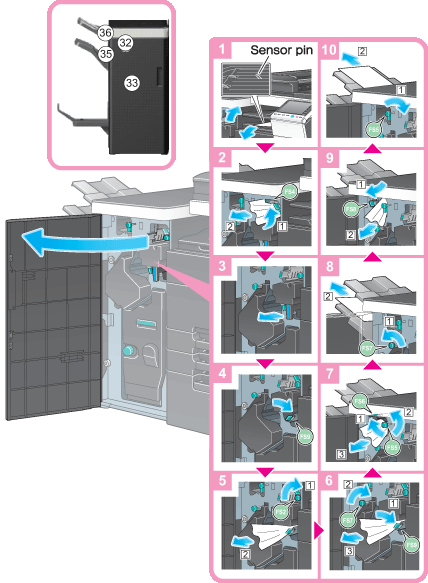

The figure above shows the optional Finisher FS-535 equipped with Saddle Stitcher SD-512 and Punch Kit PK-521.
Do not strongly press or pull out the Sensor pin in the Horizontal Transport Unit. Doing so may cause a damage of the Horizontal Transport Unit.
Sections inside the finisher prone to paper jams vary depending on the settings for [Finishing].

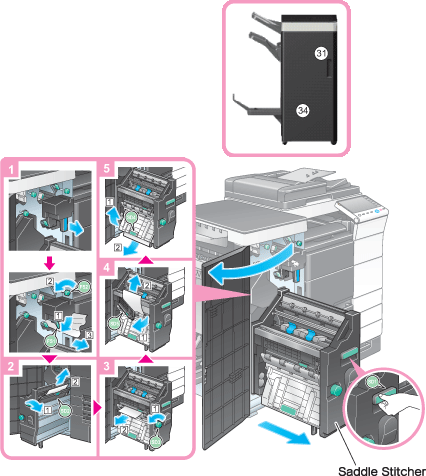

The figure above shows the optional Finisher FS-535 equipped with Saddle Stitcher SD-512 and Punch Kit PK-521.
When moving the Saddle Stitcher, be sure to only hold the handle. Otherwise, your hand or finger may get caught in the machine.
