Replacing Consumables
- Replacing a Toner Cartridge
- Replacing a Waste Toner Box
- Replacing a Staple Cartridge: Finisher FS-534
- Replacing a Staple Cartridge: Saddle Stitcher SD-511
- Replacing a Staple Cartridge: Finisher FS-535
- Replacing a Staple Cartridge: Saddle Stitcher SD-512
- Punch scraps: Processing in the Finisher FS-534
- Punch scraps: Processing in the Finisher FS-535
- Punch scraps: Processing in the Z Folding Unit ZU-606

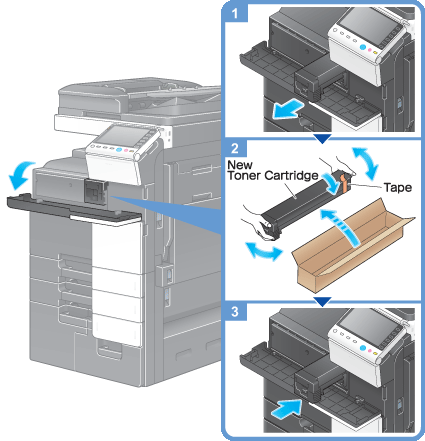

Replacing a Toner Cartridge
Shake a new Toner Cartridge well, approximately 5 to 10 times, before installing it.
Do not forcedly open or disassemble a Toner Cartridge (toner container).
Do not forcedly remove or dispose of toner that remains in a Toner Cartridge (toner container).

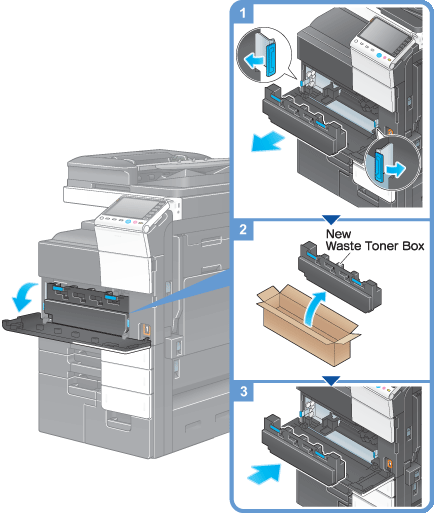

Replacing a Waste Toner Box
Your service representative will recover your used Waste Toner Box. Place a cap on it and store it in a box.

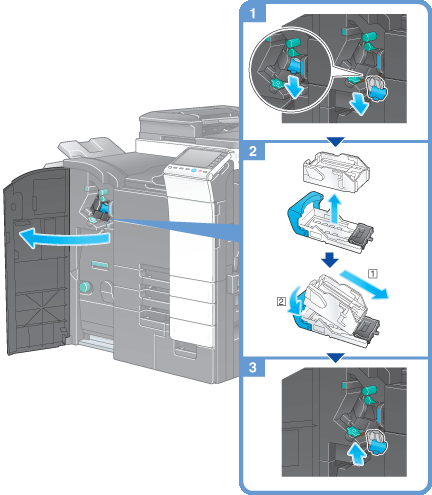

Replacing a Staple Cartridge: Finisher FS-534
The figure shows an optional Finisher FS-534 with Saddle Stitcher SD-511 and Punch Kit PK-520 installed.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate even though no sheets will be stapled.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.

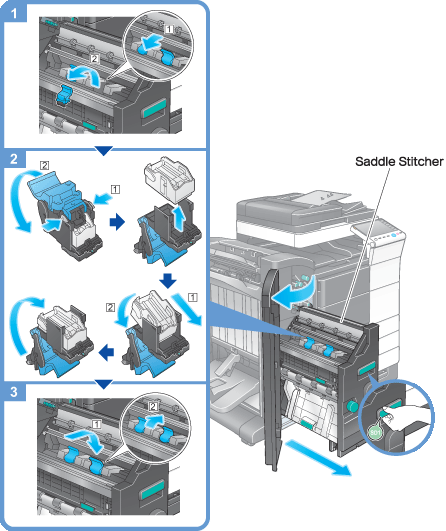

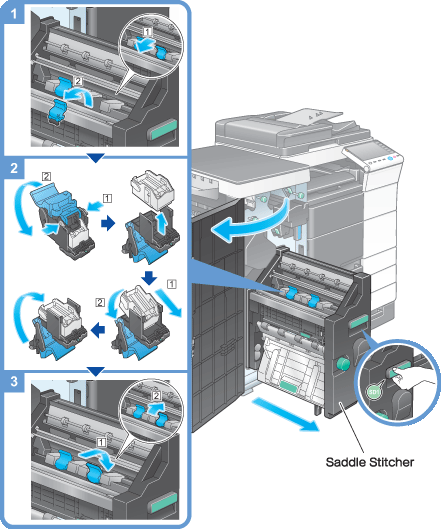

Replacing a Staple Cartridge: Saddle Stitcher SD-511
The figure shows an optional Finisher FS-534 with Saddle Stitcher SD-511 and Punch Kit PK-520 installed.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate even though no sheets will be stapled.
When moving the Saddle Stitcher, be sure to only hold the handle. Otherwise, your hand or finger may get caught in the machine.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.

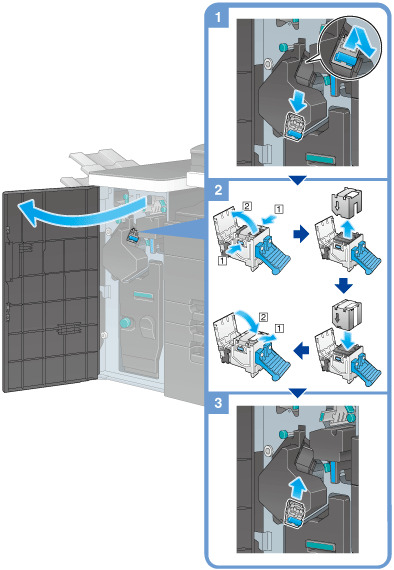

Replacing a Staple Cartridge: Finisher FS-535
The figure shows an optional Finisher FS-535 with Saddle Stitcher SD-512 and Punch Kit PK-521 installed.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate even though no sheets will be stapled.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.
Replacing a Staple Cartridge: Saddle Stitcher SD-512
The figure shows an optional Finisher FS-535 with Saddle Stitcher SD-512 and Punch Kit PK-521 installed.
Do not remove staples that remain in the machine. Otherwise, the stapling function will activate even though no sheets will be stapled.
When moving the Saddle Stitcher, be sure to only hold the handle. Otherwise, your hand or finger may get caught in the machine.
Be sure to replace the Staple Cartridge after the relevant message has appeared. If a Staple Cartridge is removed before the relevant message appears, it may result in a failure.

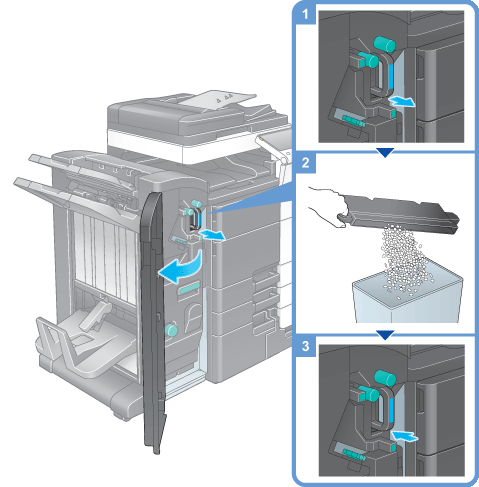

Punch scraps: Processing in the Finisher FS-534
The figure shows an optional Finisher FS-534 with Saddle Stitcher SD-511 and Punch Kit PK-520 installed.

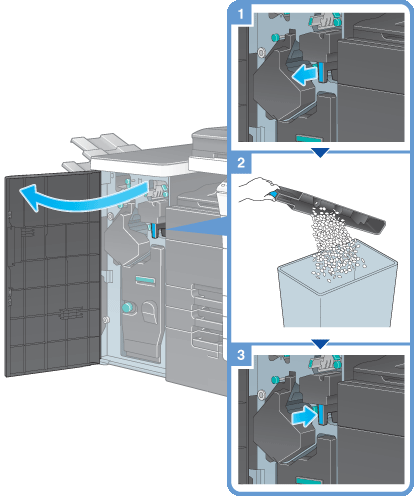

Punch scraps: Processing in the Finisher FS-535
The figure shows an optional Finisher FS-535 with Saddle Stitcher SD-512 and Punch Kit PK-521 installed.

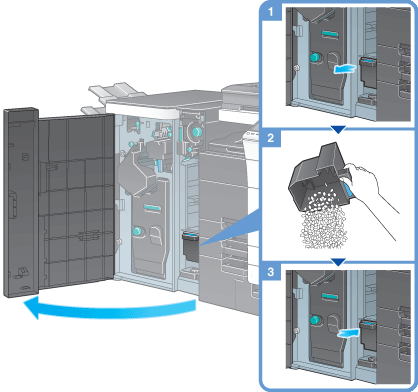

Punch scraps: Processing in the Z Folding Unit ZU-606
The figure shows an optional Finisher FS-535 with Saddle Stitcher SD-512, Punch Kit PK-521, and Z Folding Unit ZU-606 installed.
